A non-rated partition wall assembly terminates at a concrete wall or column sized per plan. The gypsum board finish of the partition stops at the concrete interface, utilizing drywall joint tape at the joint. A non-rated furring wall assembly occurs as scheduled where indicated. The gypsum board finish stops at the rated wall assembly.

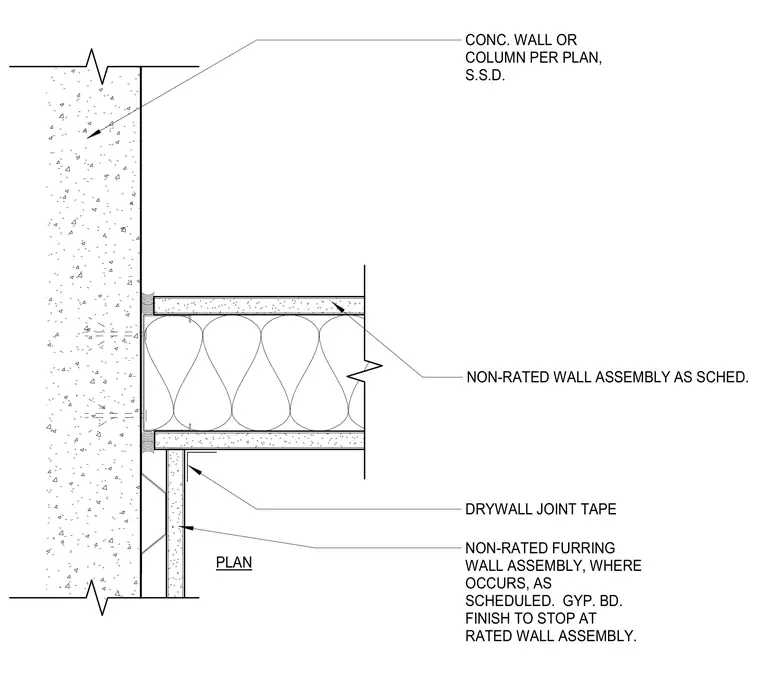

CONC. WALL OR COLUMN PER PLAN, S.S.D. DRYWALL JOINT TAPE NON-RATED FURRING WALL ASSEMBLY, WHERE OCCURS, AS SCHEDULED. GYP. BD. FINISH TO STOP AT RATED WALL ASSEMBLY. PLAN NON-RATED WALL ASSEMBLY AS SCHED.
