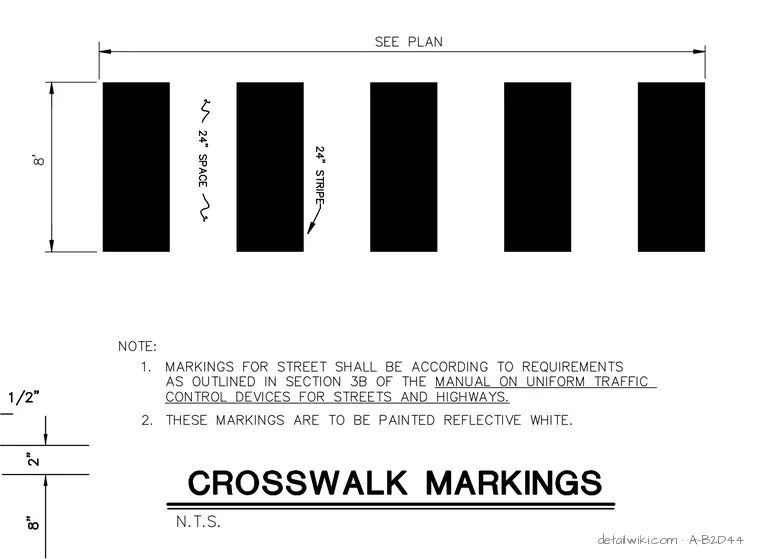

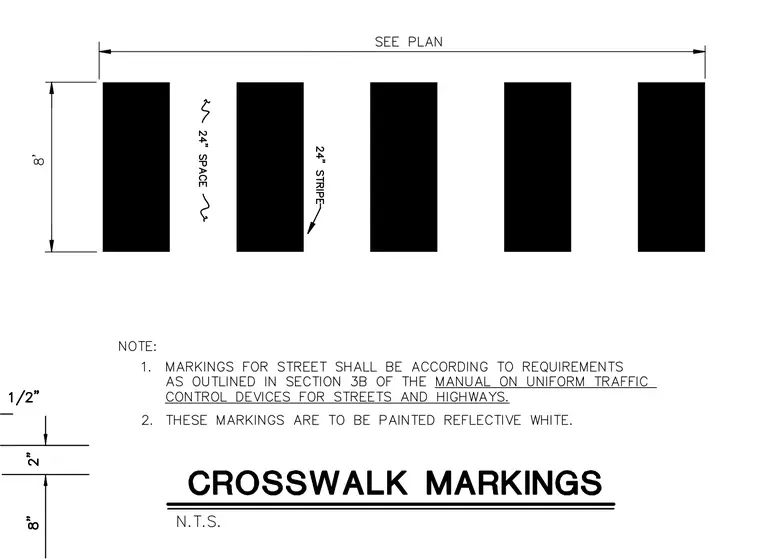

The crosswalk marking layout consists of twenty-four-inch wide reflective white stripes spaced twenty-four inches apart, with a length of eight feet per stripe as sized per plan. General notes require street markings to comply with Section 3B of the Manual on Uniform Traffic Control Devices for Streets and Highways using painted reflective white material.
