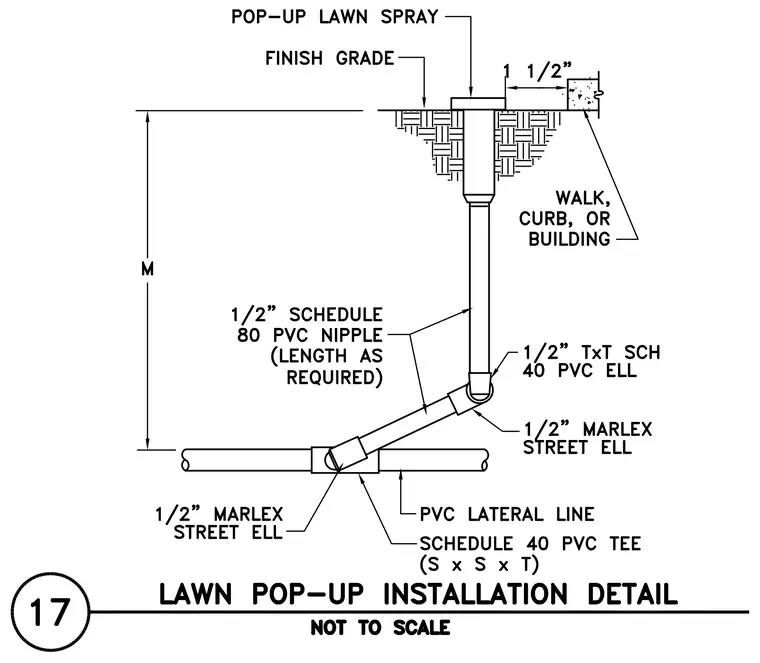

A pop-up lawn spray head connects to a PVC lateral line through a series of fittings and pipes situated below the finish grade. The assembly ties into a schedule 40 PVC tee with slip by slip by thread connections on the lateral line. Two Marlex street elbows and a 1/2-inch schedule 80 PVC nipple of variable length provide an offset and riser up to the spray head. A 1/2-inch threaded by threaded schedule 40 PVC ell transitions the riser to the vertical spray head positioned a specified distance from adjacent walks, curbs, or buildings.
