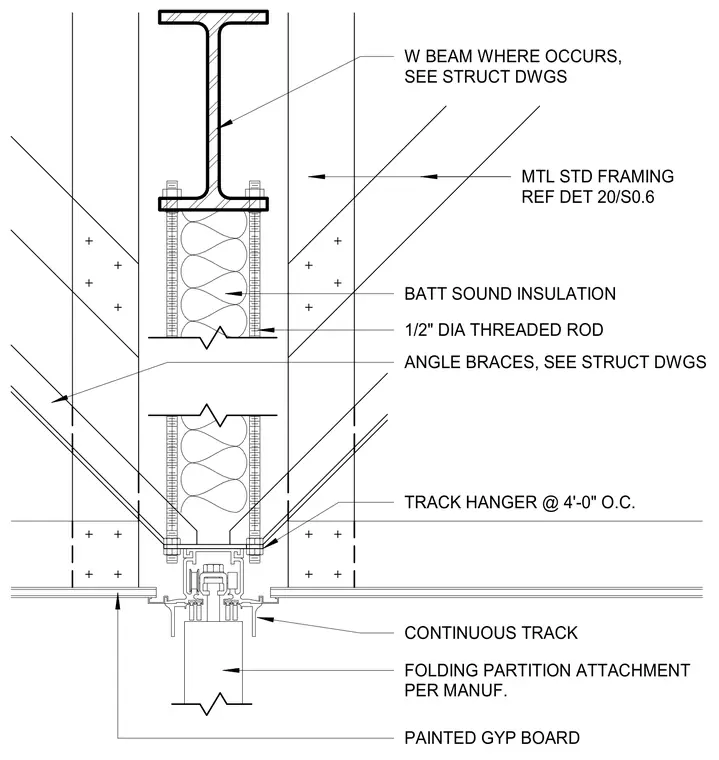

A continuous track for a folding partition is suspended below a wide-flange steel beam using one-half-inch diameter threaded rod track hangers spaced at four feet on center. Angle braces detailed on structural drawings provide lateral support to the metal stud framing. Batt sound insulation fills the partition cavity between the metal studs, which are finished with painted gypsum board. The folding partition attachment follows the manufacturer specifications.
W BEAM WHERE OCCURS, SEE STRUCT DWGS ANGLE BRACES, SEE STRUCT DWGS BATT SOUND INSULATION 1/2" DIA THREADED ROD TRACK HANGER @ 4'-0" O.C. CONTINUOUS TRACK FOLDING PARTITION ATTACHMENT PER MANUF. PAINTED GYP BOARD MTL STD FRAMING REF DET 20/S0.6
