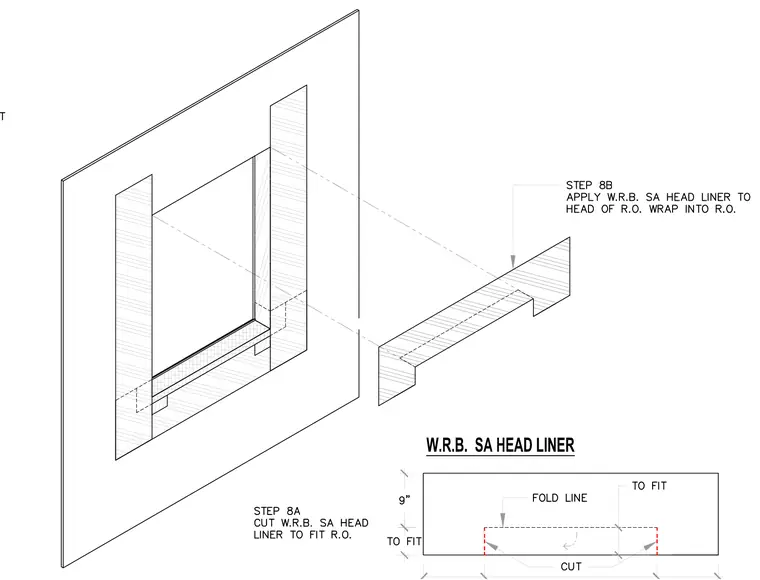

Step 8A instructs to cut the weather resistive barrier self-adhered head liner to fit the rough opening with dimensions of nine inches in height. Step 8B applies the self-adhered head liner to the head of the rough opening and wraps it into the opening. The liner features designated fold lines and cut lines to fit the rough opening configuration.
W.R.B. SA HEAD LINER
