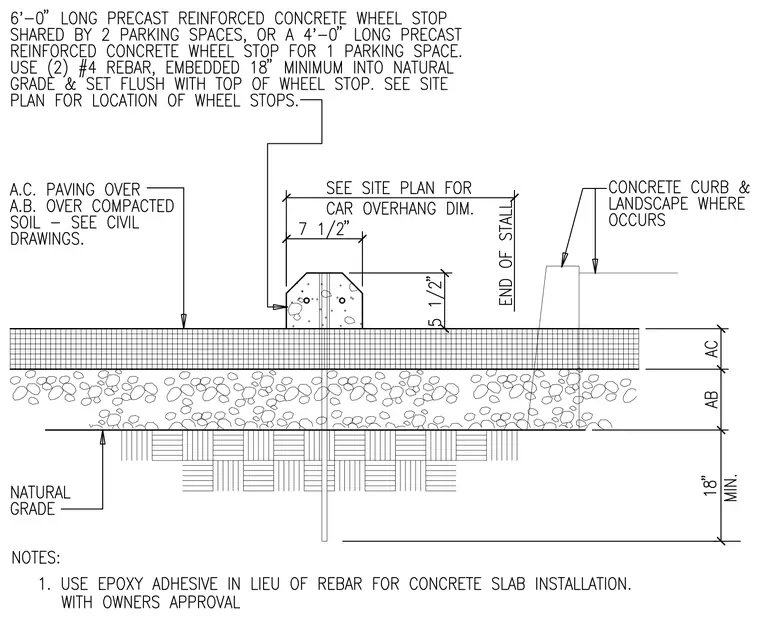

A precast reinforced concrete wheel stop is anchored to the pavement assembly using two number four rebar pins embedded eighteen inches minimum into natural grade and set flush with the top of the wheel stop. The wheel stop is available in a six-foot length shared by two parking spaces or a four-foot length for a single parking space. The paving assembly consists of asphaltic concrete paving over aggregate base over compacted soil, with dimensions and car overhang sized per site plans. Optional epoxy adhesive may be used in lieu of rebar for concrete slab installations with owner's approval. A concrete curb and landscape area occurs at the end of the stall where indicated.
