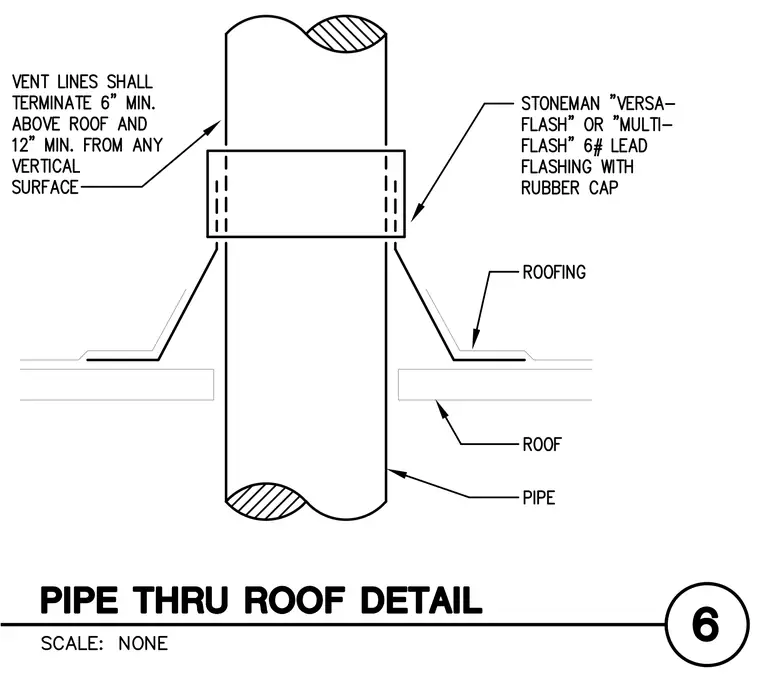

A vertical pipe penetrates the roof assembly, waterproofed with Stoneman Versa-Flash or Multi-Flash six-pound lead flashing fitted with a rubber cap. The roofing membrane extends up and seals against the flashing assembly. Vent lines terminate six inches minimum above the roof and twelve inches minimum from any vertical surface.
