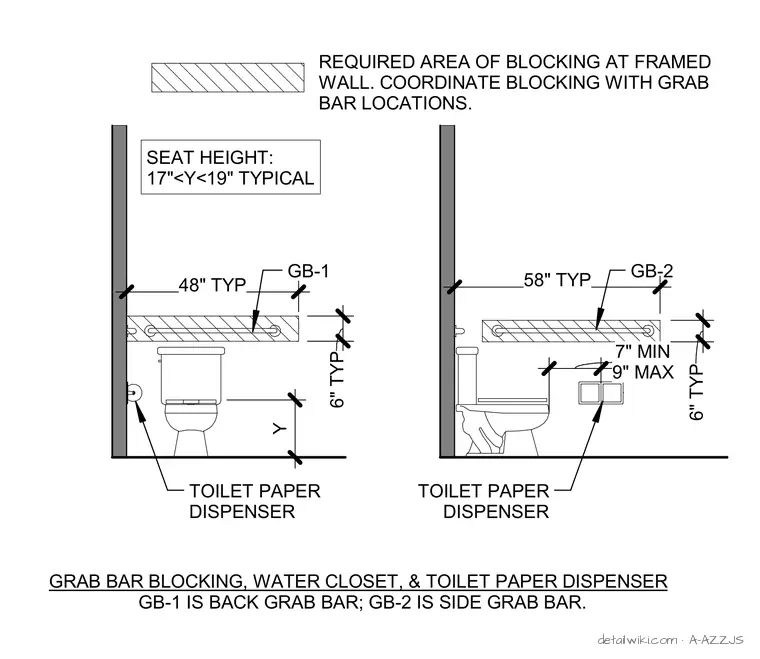

Text on the drawing
Y TOILET PAPER DISPENSER 48" TYP 7" MIN 9" MAX 6" TYP 58" TYP 6" TYP REQUIRED AREA OF BLOCKING AT FRAMED WALL. COORDINATE BLOCKING WITH GRAB BAR LOCATIONS. TOILET PAPER DISPENSER GRAB BAR BLOCKING, WATER CLOSET, & TOILET PAPER DISPENSER SEAT HEIGHT: 17"<Y<19" TYPICAL GB-1 GB-2 GB-1 IS BACK GRAB BAR; GB-2 IS SIDE GRAB BAR.
