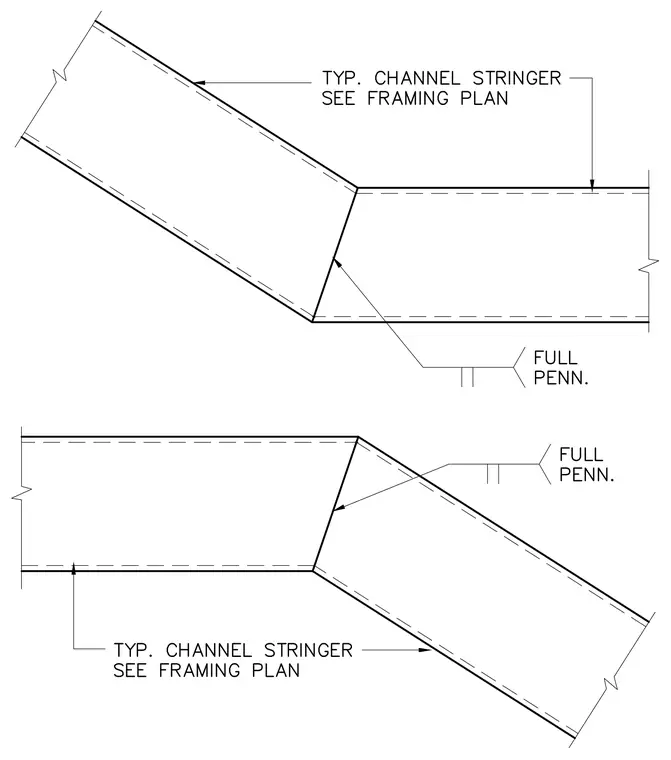

Typical channel stringer sections from the framing plan meet at a mitered joint connected by a full penetration weld.
