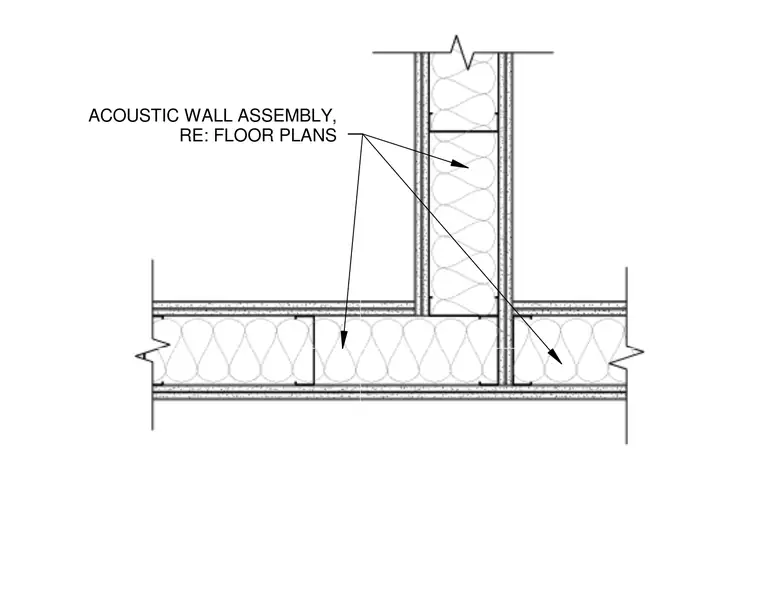

An acoustic wall assembly intersects another partition perpendicular to form a standard interior framing junction. The detail indicates layered gypsum board surfaces on metal studs filled with sound attenuation insulation. Floor plans govern the precise layout and positioning of the acoustic wall assembly.
