Main runner channels are fabricated using back-to-back runner channels secured with number ten sheet metal screws and suspended by hanger wires located at each splice with a minimum one-foot overlap tied with sixteen-gauge double loops. Furring channels are similarly tied at splices with hanger wire support. Main runners feature a specific spacing pattern of one inch, three and one-half inches, three inches, three and one-half inches, and one inch across a minimum one-foot-four-inch span. Furring channels maintain a typical one-foot-four-inch spacing at intermediate supports.

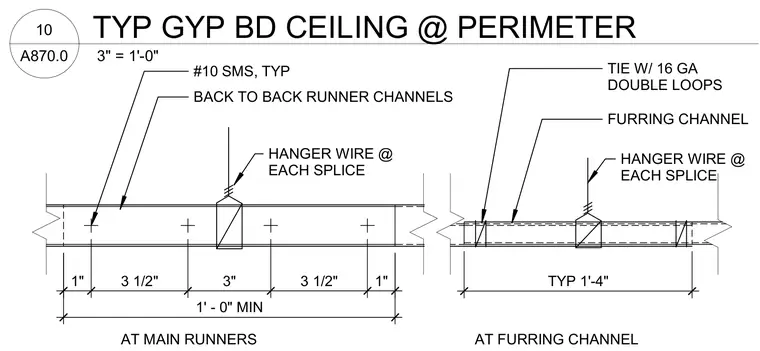

1" 3 1/2" 3" 3 1/2" 1" TYP 1'-4" AT MAIN RUNNERS AT FURRING CHANNEL #10 SMS, TYP BACK TO BACK RUNNER CHANNELS HANGER WIRE @ EACH SPLICE TIE W/ 16 GA DOUBLE LOOPS FURRING CHANNEL HANGER WIRE @ EACH SPLICE 1' - 0" MIN A870.0 3" = 1'-0" TYP GYP BD CEILING @ PERIMETER 10
