A-AZPH9 — H-01 Elevation

Architectural · A-AZPH9

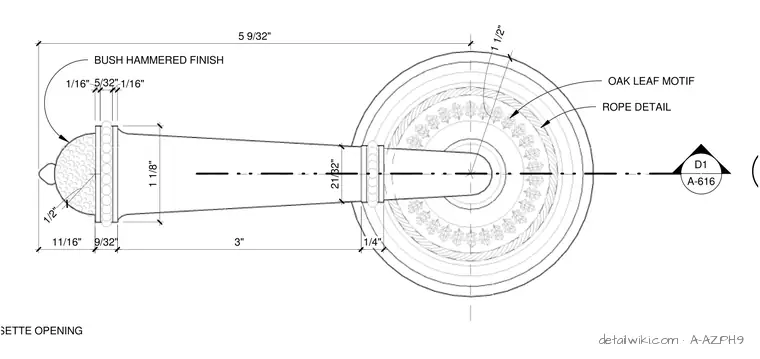

H-01 Elevation

Scale: SCALE: 12" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Elements

Doors Roof / Floor Openings

Text on the drawing

SCHLAGE CASSETTE OPENING 5 9/32" 1 1/2" 1/2" 1/16" 5/32" 1/16" 21/32" 9/32" 11/16" 3" 1/4" BUSH HAMMERED FINISH OAK LEAF MOTIF ROPE DETAIL 1 1/8" D1 A-616

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
