A custom door lever features a Schlage cassette opening and a bush hammered finish on the end cap. The lever body measures three inches long, tapering from one and one-eighth inches to twenty-one thirty-seconds of an inch, and includes decorative rope detailing and an oak leaf motif on the rosette. Precise dimensions are provided for the overall length of five and nine-thirty-seconds inches and various component spacings.

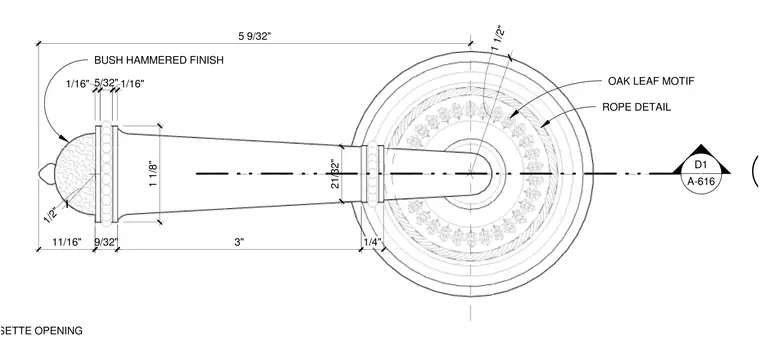

SCHLAGE CASSETTE OPENING 5 9/32" 1 1/2" 1/2" 1/16" 5/32" 1/16" 21/32" 9/32" 11/16" 3" 1/4" BUSH HAMMERED FINISH OAK LEAF MOTIF ROPE DETAIL 1 1/8" D1 A-616
