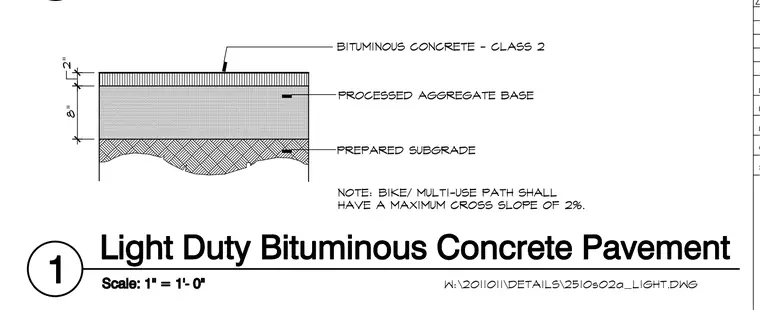

This light duty bituminous concrete pavement assembly consists of a two-inch layer of Class 2 bituminous concrete over an eight-inch processed aggregate base supported by a prepared subgrade. A drawing note specifies that bike and multi-use paths shall have a maximum cross slope of two percent.
