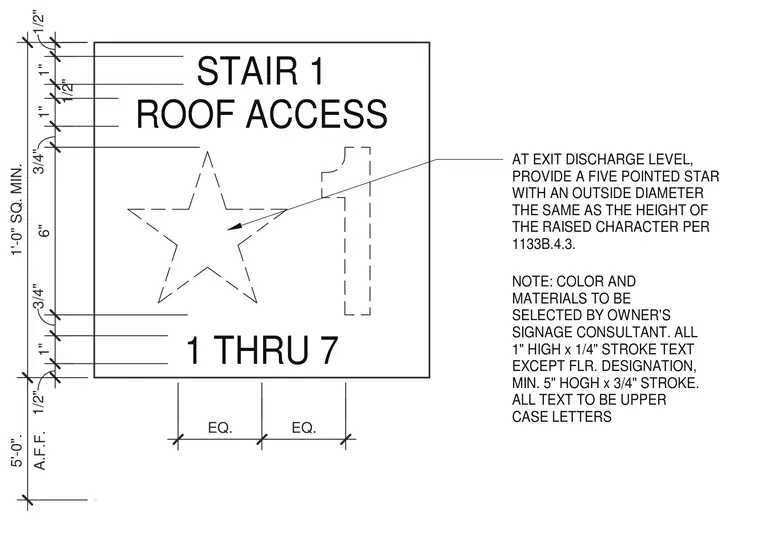

An architectural signage detail displays the required layout and dimensions for a stair and roof access floor identification sign positioned at 5'-0" above the finished floor. The square sign features upper case text including "STAIR 1", "ROOF ACCESS", and "1 THRU 7" with specific stroke widths and character heights. At the exit discharge level, a five-pointed star is included with an outside diameter matching the raised character height per code section 1133B.4.3. Colors and materials are subject to selection by the owner's signage consultant.
AT EXIT DISCHARGE LEVEL, PROVIDE A FIVE POINTED STAR WITH AN OUTSIDE DIAMETER THE SAME AS THE HEIGHT OF THE RAISED CHARACTER PER 1133B.4.3. NOTE: COLOR AND MATERIALS TO BE SELECTED BY OWNER'S SIGNAGE CONSULTANT. ALL 1" HIGH x 1/4" STROKE TEXT EXCEPT FLR. DESIGNATION, MIN. 5" HOGH x 3/4" STROKE. ALL TEXT TO BE UPPER CASE LETTERS 1 THRU 7 ROOF ACCESS STAIR 1 EQ. EQ. 1'-0" SQ. MIN. 1/2" 1" 3/4" 6" 3/4" 1" 1/2" 1" 1/2" A.F.F. 5'-0".
