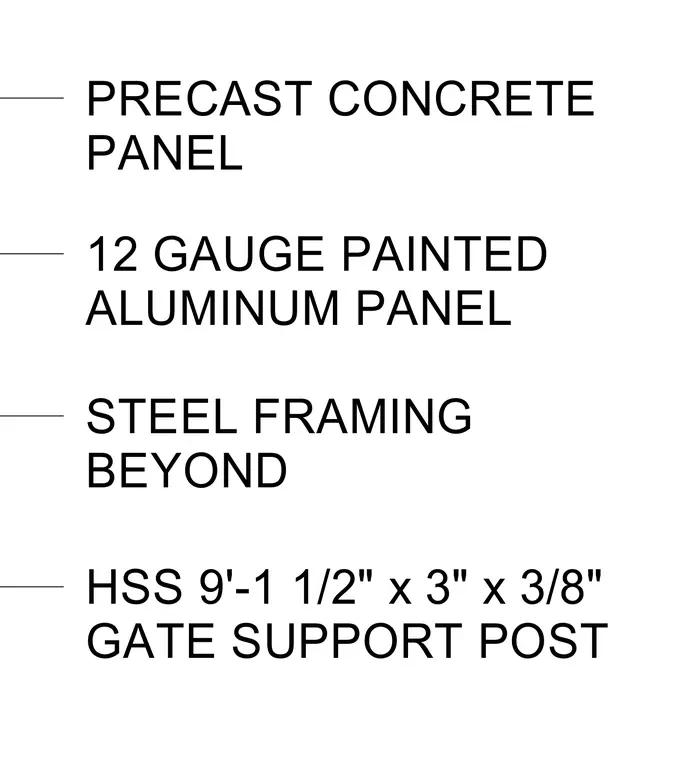

A hollow structural section gate support post measuring nine feet one and one-half inches by three inches by three-eighths of an inch is installed adjacent to precast concrete panels and twelve gauge painted aluminum panels, with steel framing located beyond the primary assembly.
HSS 9'-1 1/2" x 3" x 3/8" GATE SUPPORT POST STEEL FRAMING BEYOND 12 GAUGE PAINTED ALUMINUM PANEL PRECAST CONCRETE PANEL
