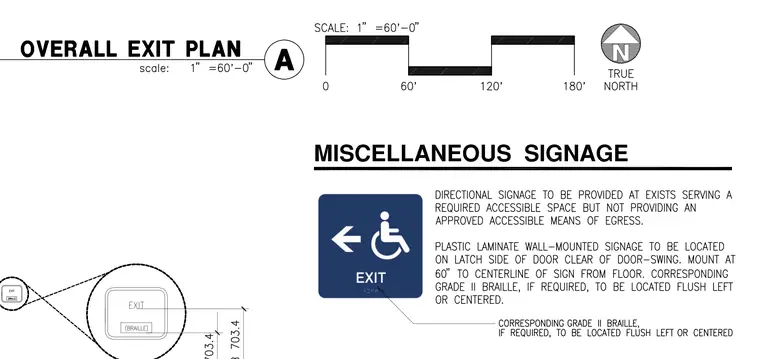

Directional signage is provided at exits serving a required accessible space that do not provide an approved accessible means of egress. Plastic laminate wall-mounted signage is located on the latch side of the door clear of the door swing. Signs are mounted at sixty inches to the centerline of the sign from the floor with corresponding Grade II Braille located flush left or centered.
