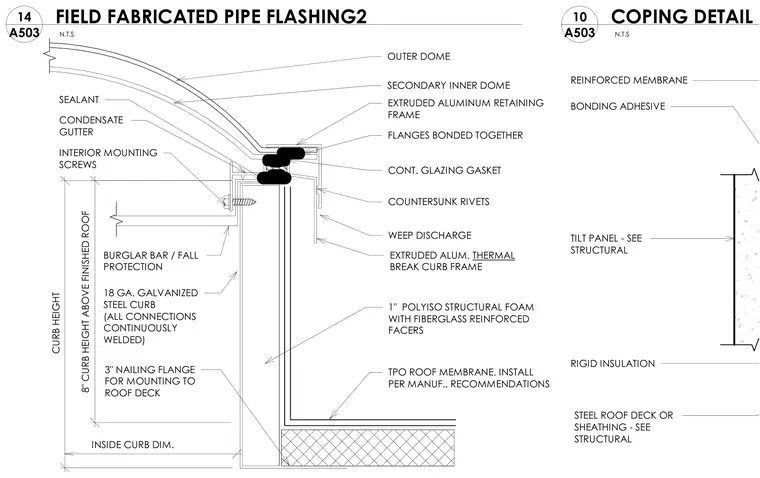

An extruded aluminum thermal break curb frame supports an outer dome and a secondary inner dome with flanges bonded together, secured by an extruded aluminum retaining frame with countersunk rivets and a continuous glazing gasket. Interior mounting screws attach the assembly to an 18-gauge galvanized steel curb with all connections continuously welded, featuring an internal condensate gutter and a burglar bar or fall protection grate. The curb incorporates one inch of polyisocyanurate structural foam with fiberglass reinforced facers and an exterior three-inch nailing flange for mounting to the roof deck. A TPO roof membrane extends up the curb over the nailing flange, installed per manufacturer recommendations with reinforced membrane and bonding adhesive.
TILT PANEL - SEE STRUCTURAL STEEL ROOF DECK OR SHEATHING - SEE STRUCTURAL BONDING ADHESIVE REINFORCED MEMBRANE RIGID INSULATION INSIDE CURB DIM. CURB HEIGHT 8" CURB HEIGHT ABOVE FINISHED ROOF INTERIOR MOUNTING SCREWS 18 GA. GALVANIZED STEEL CURB (ALL CONNECTIONS CONTINUOUSLY WELDED) CONDENSATE GUTTER SECONDARY INNER DOME FLANGES BONDED TOGETHER WEEP DISCHARGE SEALANT CONT. GLAZING GASKET 3" NAILING FLANGE FOR MOUNTING TO ROOF DECK 1" POLYISO STRUCTURAL FOAM WITH FIBERGLASS REINFORCED FACERS OUTER DOME EXTRUDED ALUMINUM RETAINING FRAME TPO ROOF MEMBRANE, INSTALL PER MANUF.. RECOMMENDATIONS EXTRUDED ALUM. THERMAL BREAK CURB FRAME COUNTERSUNK RIVETS BURGLAR BAR / FALL PROTECTION N.T.S A503 14 FIELD FABRICATED PIPE FLASHING2 N.T.S A503 10 COPING DETAIL
