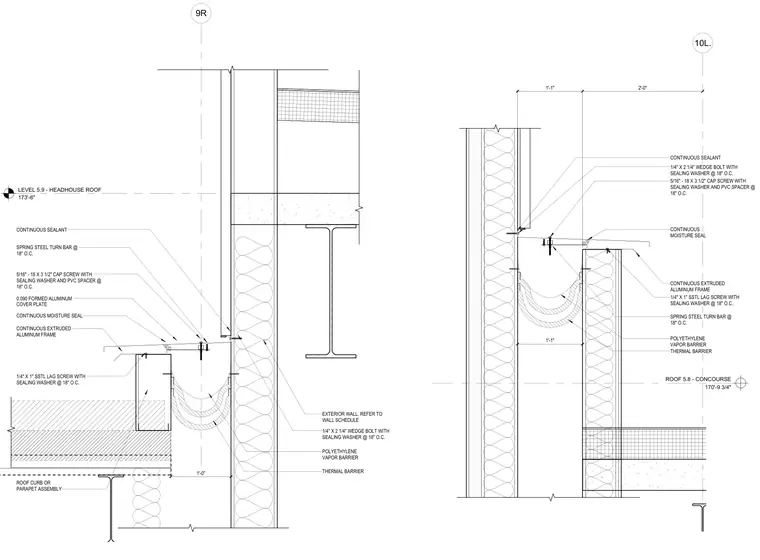

A roof expansion joint assembly incorporates a 0.090-inch formed aluminum cover plate spanning between continuous extruded aluminum frames. The aluminum frames are secured with 1/4-inch by 1-inch stainless steel lag screws with sealing washers spaced at 18 inches on center. A continuous moisture seal and continuous sealant provide weatherproofing at the joint transitions. The assembly includes a thermal barrier and polyethylene vapor barrier backed by exterior wall construction. Cap screws measuring 5/16-inch by 3-1/2-inch with sealing washers and PVC spacers secure components at 18 inches on center alongside 1/4-inch by 2-1/4-inch wedge bolts with sealing washers.
ROOF 5.8 - CONCOURSE 170'-9 3/4" 10L. THERMAL BARRIER POLYETHYLENE VAPOR BARRIER 1/4" X 2 1/4" WEDGE BOLT WITH SEALING WASHER @ 18" O.C. SPRING STEEL TURN BAR @ 18" O.C. CONTINUOUS SEALANT 5/16" - 18 X 3 1/2" CAP SCREW WITH SEALING WASHER AND PVC SPACER @ 18" O.C. CONTINUOUS MOISTURE SEAL CONTINUOUS EXTRUDED ALUMINUM FRAME 1/4" X 1" SSTL LAG SCREW WITH SEALING WASHER @ 18" O.C. 1'-1" 1'-1" 2'-0" 9R LEVEL 5.9 - HEADHOUSE ROOF 173'-6" EXTERIOR WALL, REFER TO WALL SCHEDULE ROOF CURB OR PARAPET ASSEMBLY THERMAL BARRIER POLYETHYLENE VAPOR BARRIER SPRING STEEL TURN BAR @ 18" O.C. CONTINUOUS SEALANT 1/4" X 2 1/4" WEDGE BOLT WITH SEALING WASHER @ 18" O.C. 5/16" - 18 X 3 1/2" CAP SCREW WITH SEALING WASHER AND PVC SPACER @ 18" O.C. 0.090 FORMED ALUMINUM COVER PLATE CONTINUOUS MOISTURE SEAL 1/4" X 1" SSTL LAG SCREW WITH SEALING WASHER @ 18" O.C. CONTINUOUS EXTRUDED ALUMINUM FRAME 1'-0"
