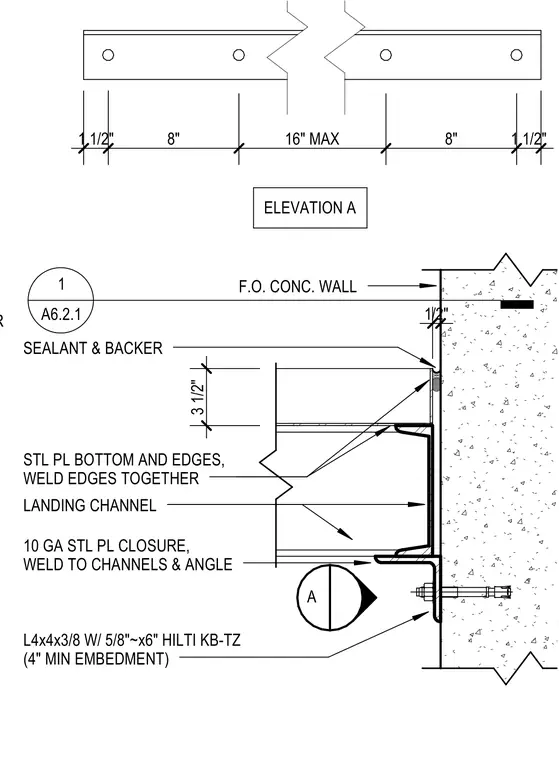

A stair landing channel is supported by an L4x4x3/8 structural steel angle anchored to the face of a concrete wall using five-eighths inch by six-inch Hilti KB-TZ expansion anchors with a four-inch minimum embedment. A ten-gauge steel plate closure is welded to the channels and angle, with bottom and edge steel plates welded together. A backer rod and sealant joint is provided at the top junction against the concrete wall face.
WELD EDGES TOGETHER 1 1/2" 8" 16" MAX 8" 1 1/2" F.O. CONC. WALL 3 1/2" L4x4x3/8 W/ 5/8"~x6" HILTI KB-TZ (4" MIN EMBEDMENT) LANDING CHANNEL 1/2" A ELEVATION A 1 A6.2.1 SEALANT & BACKER 10 GA STL PL CLOSURE, WELD TO CHANNELS & ANGLE STL PL BOTTOM AND EDGES, WELD EDGES TOGETHER
