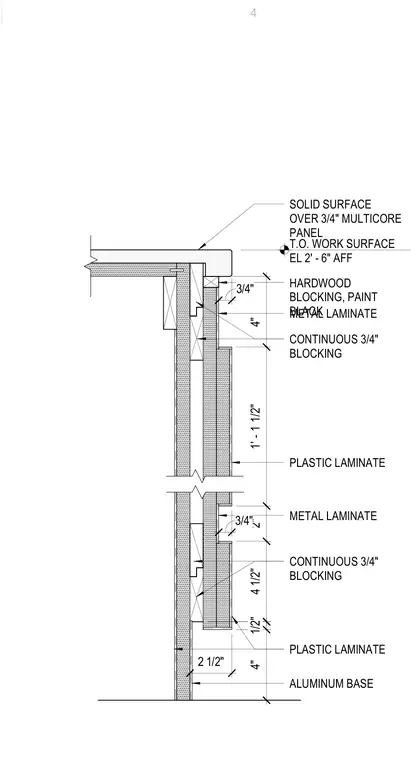

A solid surface top is mounted over a three-quarter-inch multicore panel at a work surface elevation of two feet six inches above finished floor. The casework front features alternating zones of metal laminate and plastic laminate over continuous three-quarter-inch wood blocking. A painted black three-quarter-inch hardwood blocking detail accents the upper panel reveal. An aluminum base trim finishes the bottom of the assembly against the floor.
CONTINUOUS 3/4" BLOCKING CONTINUOUS 3/4" BLOCKING SOLID SURFACE OVER 3/4" MULTICORE PANEL T.O. WORK SURFACE EL 2' - 6" AFF 4" 1' - 1 1/2" 2" 4 1/2" 4" 1/2" PLASTIC LAMINATE ALUMINUM BASE METAL LAMINATE METAL LAMINATE PLASTIC LAMINATE 2 1/2" 3/4" HARDWOOD BLOCKING, PAINT BLACK 3/4" 4
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
