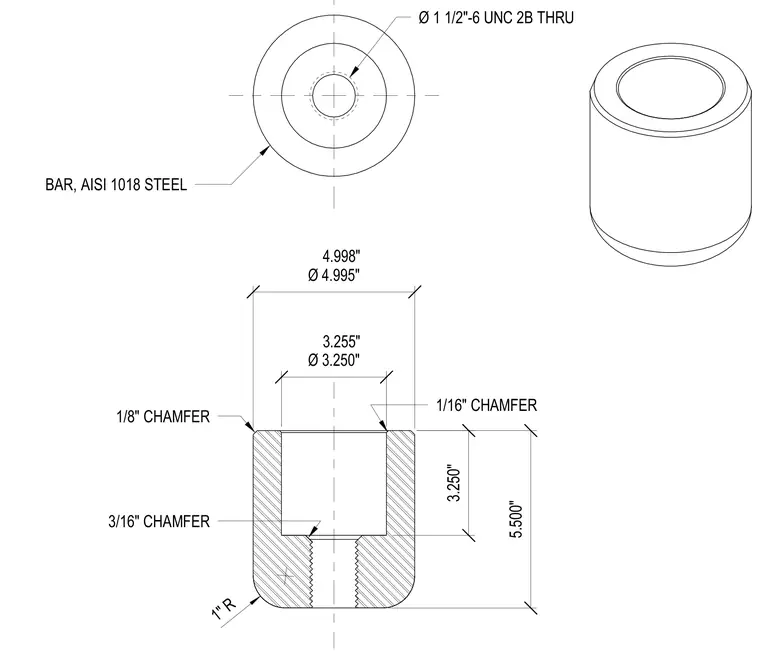

The pin sleeve is fabricated from AISI 1018 steel bar stock measuring 4.998 to 4.995 inches in outer diameter and 5.500 inches in overall height. The internal bore features an upper diameter of 3.255 to 3.250 inches extending 3.250 inches deep, transitioning to a threaded 1 1/2 inch - 6 UNC 2B through hole. The top outer edge has a 1/8 inch chamfer, the top inner bore has a 1/16 inch chamfer, the internal shoulder features a 3/16 inch chamfer, and the bottom outer edge has a 1 inch radius.
3.255" Ø 3.250" 4.998" Ø 4.995" 5.500" 1" R 1/8" CHAMFER 3/16" CHAMFER 3.250" 1/16" CHAMFER BAR, AISI 1018 STEEL Ø 1 1/2"-6 UNC 2B THRU
