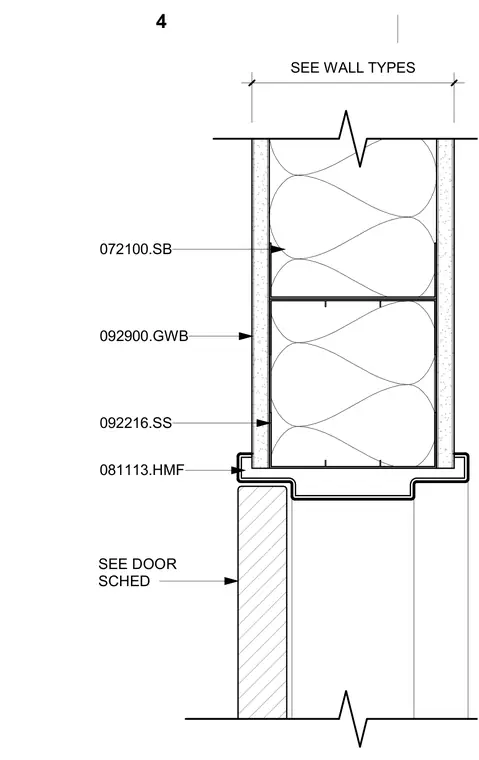

A hollow metal frame header sits at the top of a door opening framed by a metal stud partition. The wall assembly consists of cold-formed metal framing studs surfaced with gypsum wallboard on each side, enclosing thermal batt insulation. The hollow metal frame profile receives the door head directly below.
