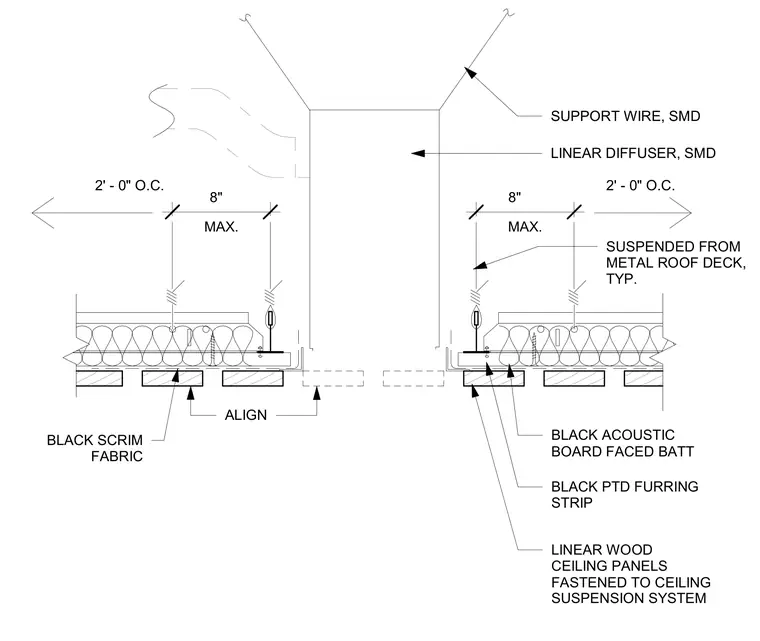

Linear wood ceiling panels are fastened to a ceiling suspension system spaced at two feet on center. Black painted furring strips and black acoustic board faced batt insulation sit above the panels, backed by a black scrim fabric. A linear diffuser is suspended from the metal roof deck with support wires. The ceiling system aligns with the diffuser edge, maintaining a maximum eight-inch spacing.
LINEAR WOOD CEILING PANELS FASTENED TO CEILING SUSPENSION SYSTEM ALIGN BLACK SCRIM FABRIC MAX. 8" MAX. 8" 2' - 0" O.C. 2' - 0" O.C. SUPPORT WIRE, SMD BLACK PTD FURRING STRIP BLACK ACOUSTIC BOARD FACED BATT LINEAR DIFFUSER, SMD SUSPENDED FROM METAL ROOF DECK, TYP.
