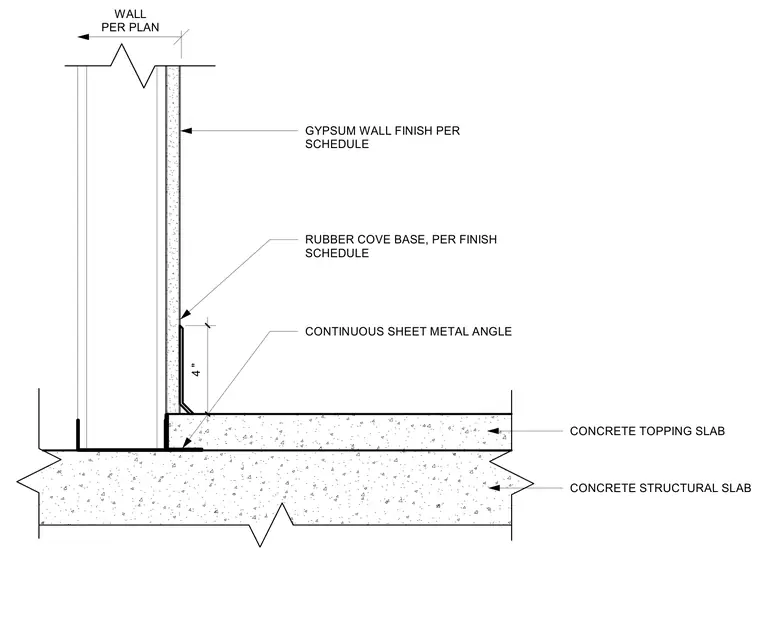

An interior partition wall with a gypsum wall finish rests on a concrete structural slab with a concrete topping slab. A continuous four-inch sheet metal angle anchors the wall assembly at the floor level. A rubber cove base is installed at the bottom of the gypsum wall finish according to the finish schedule.
WALL PER PLAN GYPSUM WALL FINISH PER SCHEDULE RUBBER COVE BASE, PER FINISH SCHEDULE 4 " CONTINUOUS SHEET METAL ANGLE CONCRETE STRUCTURAL SLAB CONCRETE TOPPING SLAB
