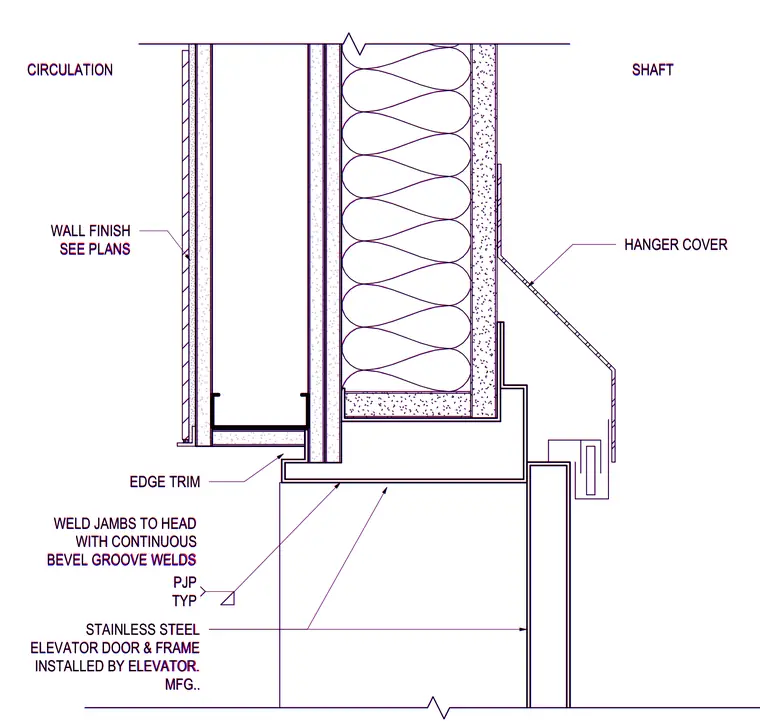

The stainless steel elevator door and frame is installed by the elevator manufacturer with the jambs welded to the head using typical partial joint penetration continuous bevel groove welds. Edge trim finishes the junction between the door frame and the wall finish as sized per plans. A hanger cover protects the operating mechanism on the shaft side.
STAINLESS STEEL ELEVATOR DOOR & FRAME INSTALLED BY ELEVATOR. MFG.. HANGER COVER EDGE TRIM WALL FINISH SEE PLANS SHAFT CIRCULATION PJP TYP WELD JAMBS TO HEAD WITH CONTINUOUS BEVEL GROOVE WELDS STAINLESS STEEL ELEVATOR DOOR & FRAME INSTALLED BY ELEVATOR. MFG.. HANGER COVER EDGE TRIM WALL FINISH SEE PLANS SHAFT CIRCULATION PJP TYP WELD JAMBS TO HEAD WITH CONTINUOUS BEVEL GROOVE WELDS
