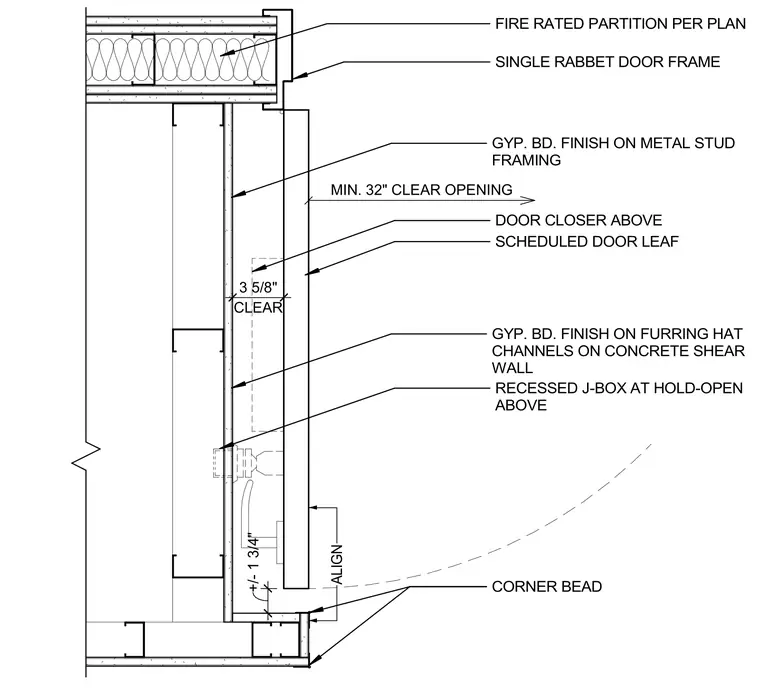

A single rabbet door frame transitions between a fire-rated partition and a gypsum board finish over metal stud framing or hat channels on a concrete shear wall. The assembly provides a minimum thirty-two-inch clear opening with a scheduled door leaf and a door closer mounted above. A recessed junction box serves the hold-open device located above, while corner beads finish the gypsum board edges at the opening.
SCHEDULED DOOR LEAF +/- 1 3/4" CLEAR 3 5/8" FIRE RATED PARTITION PER PLAN GYP. BD. FINISH ON FURRING HAT CHANNELS ON CONCRETE SHEAR WALL SINGLE RABBET DOOR FRAME GYP. BD. FINISH ON METAL STUD FRAMING MIN. 32" CLEAR OPENING DOOR CLOSER ABOVE RECESSED J-BOX AT HOLD-OPEN ABOVE CORNER BEAD ALIGN
