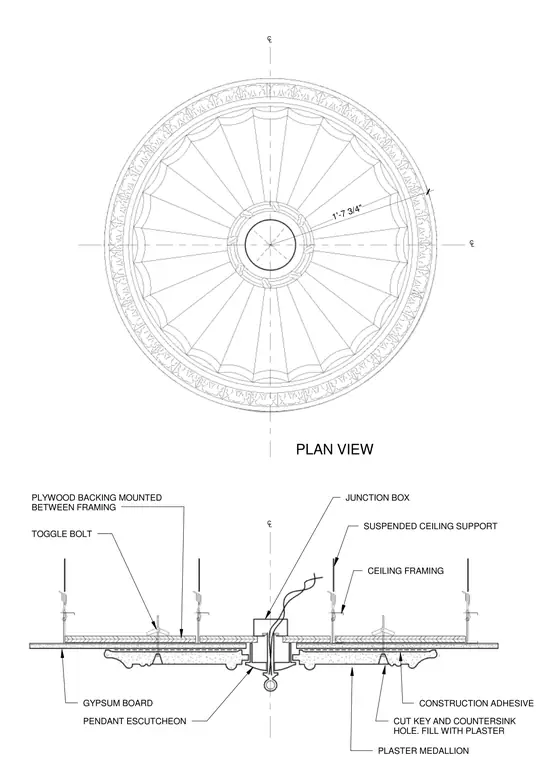

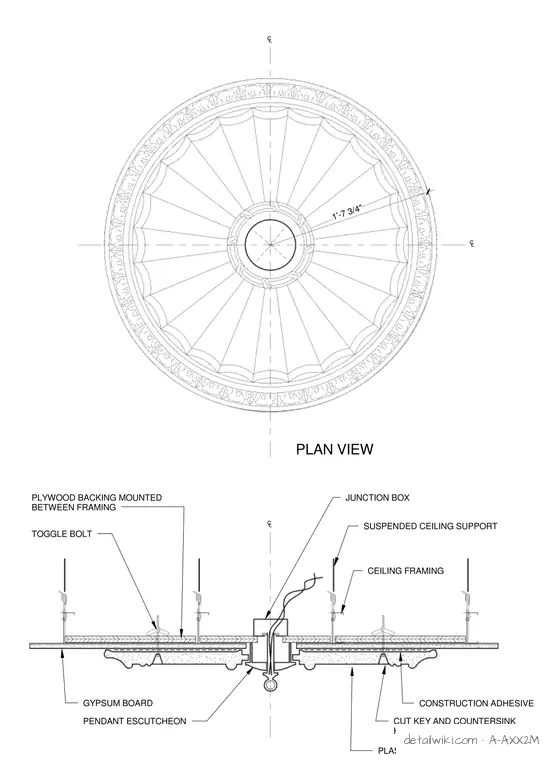

A-AXX2M — T206 Custom Medallion

Architectural · A-AXX2M

T206 Custom Medallion

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

EIFS / Plaster / Stucco Gypsum / Drywall Timber / Wood

Elements

Ceilings Millwork / Casework

Connections

Bolted Connection

Text on the drawing

CL CL 1'-7 3/4" JUNCTION BOX PENDANT ESCUTCHEON TOGGLE BOLT SUSPENDED CEILING SUPPORT CEILING FRAMING GYPSUM BOARD CONSTRUCTION ADHESIVE PLYWOOD BACKING MOUNTED BETWEEN FRAMING CUT KEY AND COUNTERSINK HOLE. FILL WITH PLASTER PLAN VIEW PLASTER MEDALLION CL
