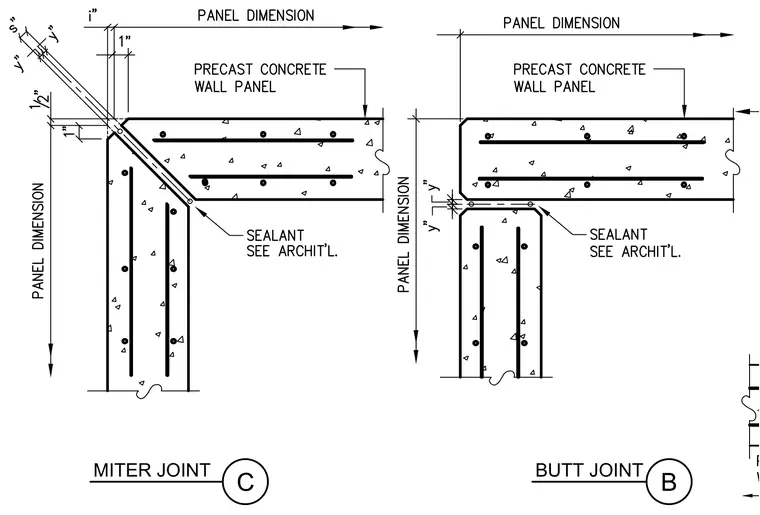

Precast concrete wall panels meet at a corner in two configurations: a miter joint with a diagonal meeting plane and a butt joint with a square meeting plane. Both configurations feature a joint gap sealed with sealant sized per architectural specifications. Reinforcing steel is detailed within the precast panels adjacent to the corner junctions. Overall panel dimensions and joint widths are dimensioned.
