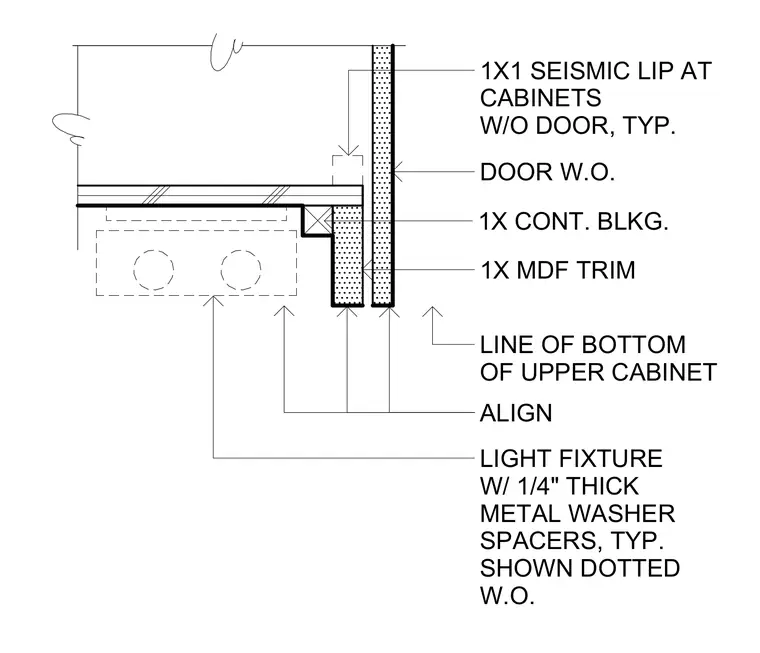

An upper cabinet assembly features continuous one-inch wood blocking secured behind the cabinet box with a one-inch by one-inch seismic lip installed at cabinets without doors. A one-inch medium-density fiberboard trim piece finishes the lower edge aligned with the bottom of the upper cabinet. A light fixture is mounted below with one-quarter-inch thick metal washer spacers typically shown dotted.
1X1 SEISMIC LIP AT CABINETS W/O DOOR, TYP. DOOR W.O. 1X MDF TRIM LINE OF BOTTOM OF UPPER CABINET ALIGN LIGHT FIXTURE W/ 1/4" THICK METAL WASHER SPACERS, TYP. SHOWN DOTTED W.O. 1X CONT. BLKG.
