Countertop and Base Cabinet Section with Backsplash

Materials

Elements

Walls Partitions Doors Millwork / Casework Connections / Plates Roof / Floor Openings

About this detail

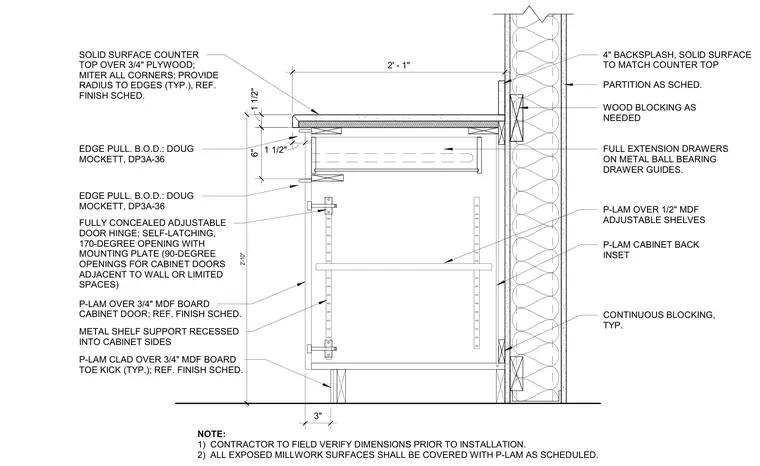

This interior architectural section details a base cabinet and solid surface countertop assembly mounted against a framed partition wall. The countertop consists of a solid surface material over a three-quarter-inch plywood substrate with mitered corners and radiused edges, featuring a four-inch solid surface backsplash. The cabinet incorporates full-extension drawers on metal ball-bearing drawer guides, adjustable shelving constructed from one-half-inch medium-density fiberboard with recessed metal shelf supports, and plastic laminate-clad doors hung on fully concealed adjustable hinges with mounting plates. Edge pulls by Doug Mockett model DP3A-36 are specified for the doors and drawers. The cabinet rests on a plastic laminate-clad toe kick over a three-quarter-inch medium-density fiberboard base and is anchored to wood blocking and continuous blocking installed within the partition wall.
