Architectural · A-AXR4F

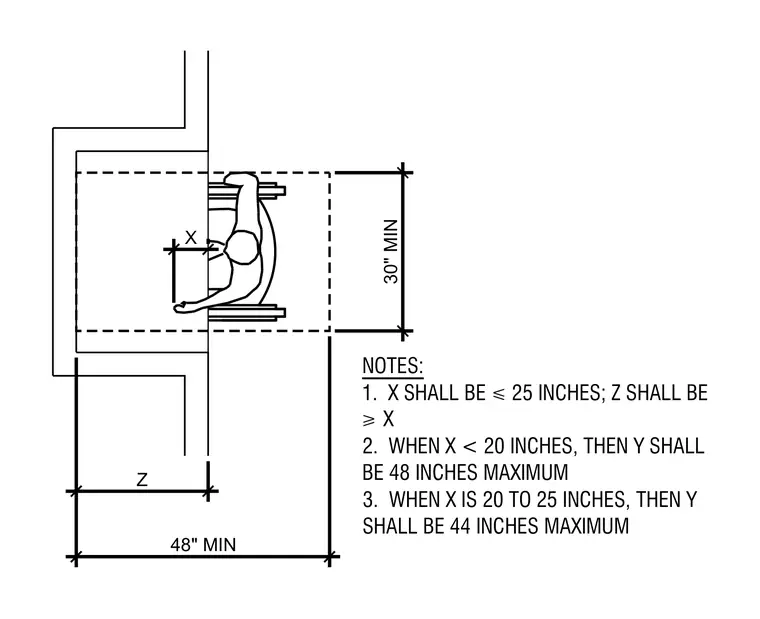

Accessible Reach Range and Clear Floor Space Diagram

About this detail

This accessibility diagram defines the required clearances and reach ranges for wheelchair users relative to elements such as grab bars, dispensers, or fixtures. The clear floor space requires a minimum width of 30 inches and a minimum depth of 48 inches. Dimension Z represents the reach depth, while dimension X indicates the offset distance. When dimension X is less than 20 inches, dimension Y is limited to a maximum of 48 inches. When dimension X is between 20 and 25 inches, dimension Y is limited to a maximum of 44 inches.
