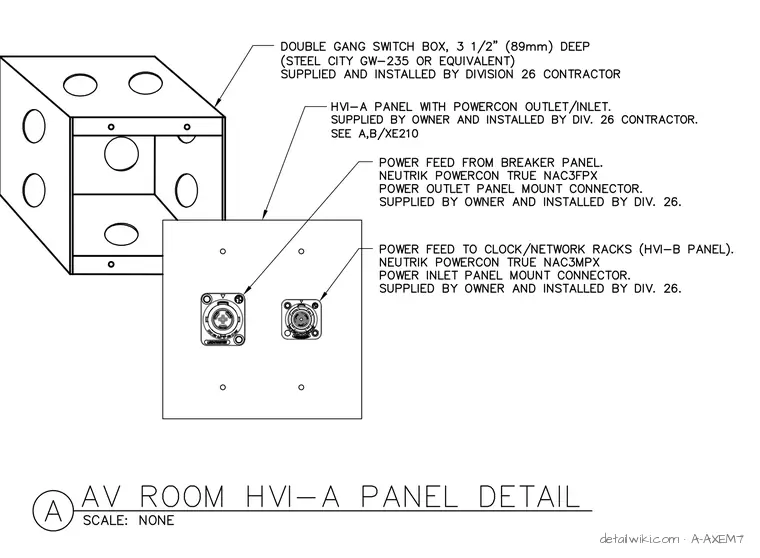

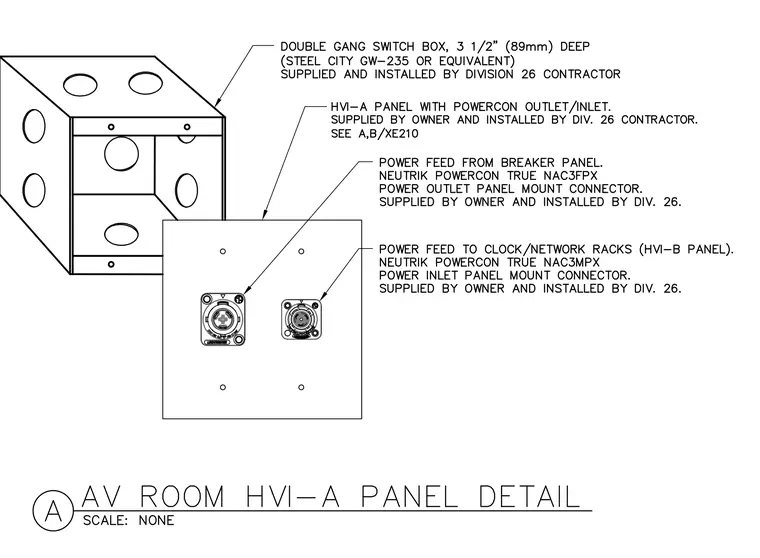

An isometric view of the HVI-A panel assembly consists of a double gang switch box, 3 1/2 inches deep, equivalent to a Steel City GW-235, supplied and installed by the division 26 contractor. The HVI-A panel features a powercon outlet and inlet supplied by the owner and installed by division 26, referencing sheets A and B on XE210. A power feed from the breaker panel connects to a Neutrik Powercon True NAC3FPX power outlet panel mount connector supplied by the owner and installed by division 26. An additional power feed routes to clock and network racks via the HVI-B panel using a Neutrik Powercon True NAC3MPX power inlet panel mount connector supplied by the owner and installed by division 26.
