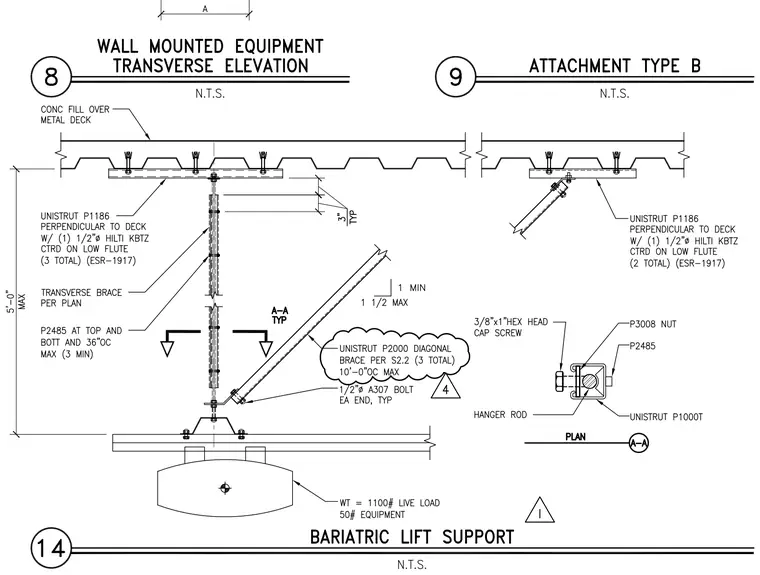

A bariatric lift support hangs from a concrete fill over metal deck floor assembly via a transverse brace. The upper attachment utilizes a Unistrut P1186 member perpendicular to the deck, anchored with one half-inch diameter Hilti KBTZ fastener centered on the low flute, totaling three fasteners with ESR-1917 compliance. P2485 components are placed at the top and bottom at thirty-six inches on center maximum with a three-inch minimum. A Unistrut P2000 diagonal brace connects with a half-inch diameter A307 bolt at each end typical. The lower equipment weighs eleven hundred pounds live load with fifty-pound equipment weight. An inset plan section details the hanger rod connection utilizing a three-eighths by one-inch hex head cap screw, P3008 nut, P2485, and Unistrut P1000T.
