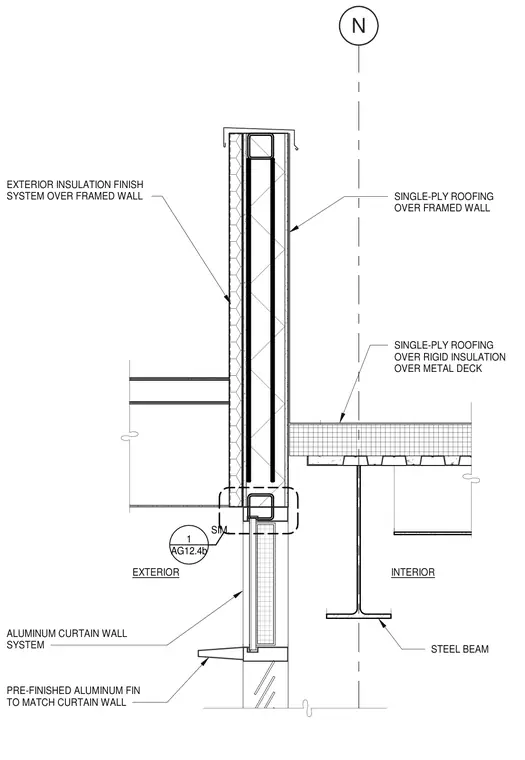

An exterior insulation finish system over a framed wall extends upward to form a parapet assembly above a roof deck. The roof structure consists of single-ply roofing over rigid insulation supported by a metal deck and steel beam. Below the parapet line, an aluminum curtain wall system interfaces with a pre-finished aluminum fin designed to match the curtain wall finish.
N INTERIOR EXTERIOR EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL AG12.4b 1 SIM. SINGLE-PLY ROOFING OVER FRAMED WALL STEEL BEAM SINGLE-PLY ROOFING OVER RIGID INSULATION OVER METAL DECK PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL ALUMINUM CURTAIN WALL SYSTEM
