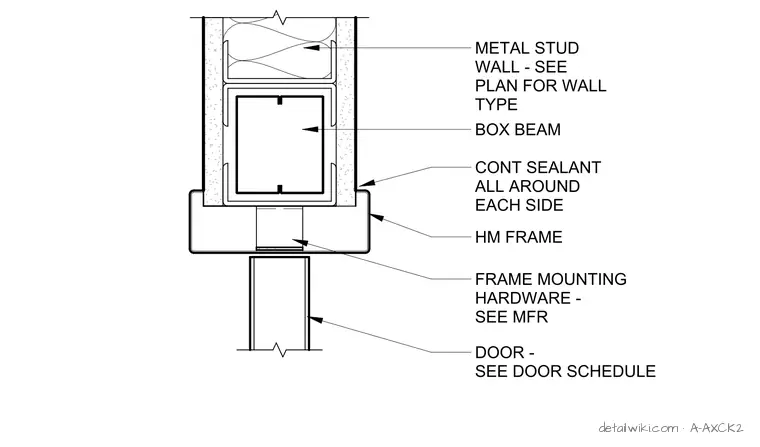

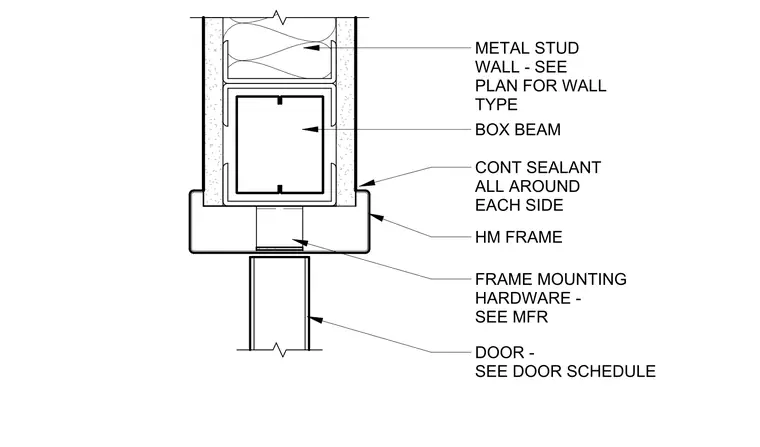

Hollow metal door frame head assembly installed within a metal stud wall partition. A box beam integrated into the wall framing above the door opening provides structural support. The hollow metal frame secures to the box beam using manufacturer-specified mounting hardware. Continuous sealant applied around the perimeter of the frame on each side seals the junction between the frame and the wall finish. The door leaf is positioned within the frame, with its specific type and configuration referenced in the door schedule.
