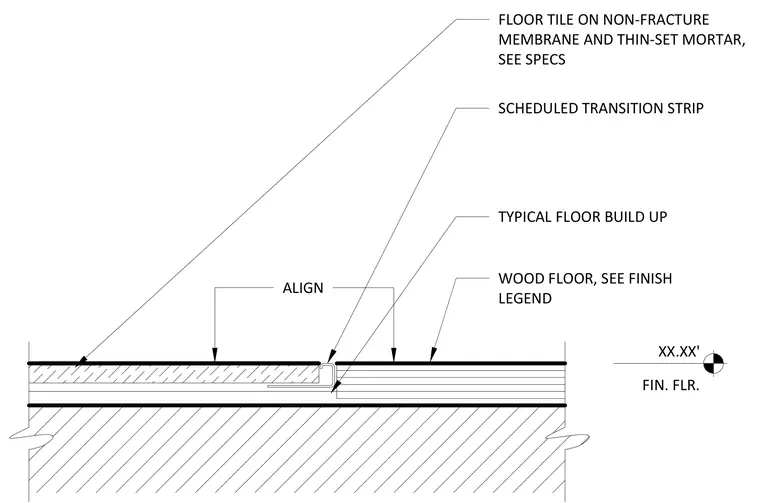

A tile floor is installed over a non-fracture membrane and thin-set mortar per specifications, adjoining a wood floor supported by a concrete substrate and typical floor buildup. A scheduled transition strip aligns the finished floor heights between the different floor materials. The wood flooring connects adjacent to the transition strip over the underlying floor assembly.
WOOD FLOOR, SEE FINISH LEGEND FLOOR TILE ON NON-FRACTURE MEMBRANE AND THIN-SET MORTAR, SEE SPECS TYPICAL FLOOR BUILD UP SCHEDULED TRANSITION STRIP ALIGN XX.XX' FIN. FLR.
