Architectural · A-AWJM8

Accent Wall Light Cove at Tile

Materials

Elements

About this detail

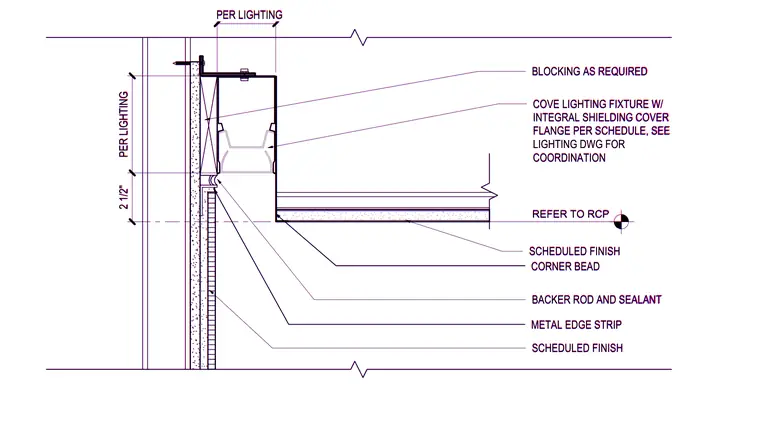

An interior wall light cove assembly integrates a cove lighting fixture with an integral shielding cover flange secured to scheduled blocking as required. A metal edge strip, corner bead, and scheduled finish abut the assembly, finished with backer rod and sealant at the joint. The adjacent wall receives a scheduled finish over substrate supported by framing, coordinated per lighting drawings and the reflected ceiling plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
