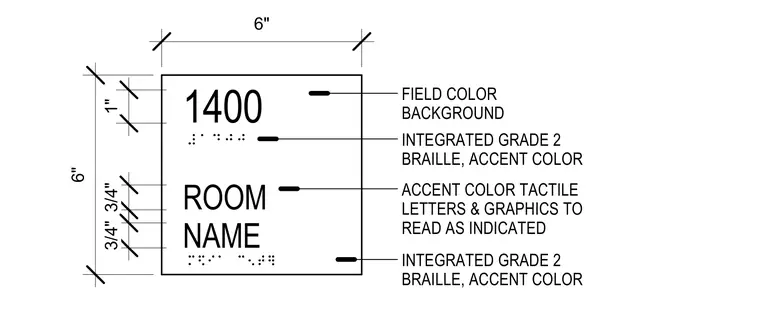

A square room sign measuring six inches by six inches featuring a field color background with tactile letters, graphics, and integrated Grade 2 braille in an accent color. The layout includes specific vertical spacing with a one-inch margin from the top edge to the room number and three-quarter-inch spacing for subsequent text and braille elements.
6" 6" ROOM NAME 3/4" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS TO READ AS INDICATED INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR 1400 1" INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR 3/4"
