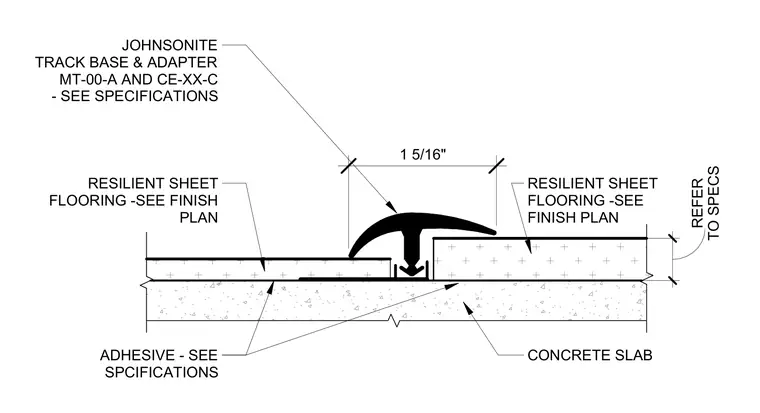

Resilient sheet flooring is applied over a concrete slab using adhesive as specified in the finish plan. A Johnsonite track base and adapter, designated as MT-00-A and CE-XX-C, provides the transition between flooring materials. The assembly spans a one and five-sixteenth inch joint configuration.
RESILIENT SHEET FLOORING -SEE FINISH PLAN CONCRETE SLAB ADHESIVE - SEE SPCIFICATIONS TO SPECS REFER JOHNSONITE TRACK BASE & ADAPTER MT-00-A AND CE-XX-C - SEE SPECIFICATIONS RESILIENT SHEET FLOORING -SEE FINISH PLAN 1 5/16"
