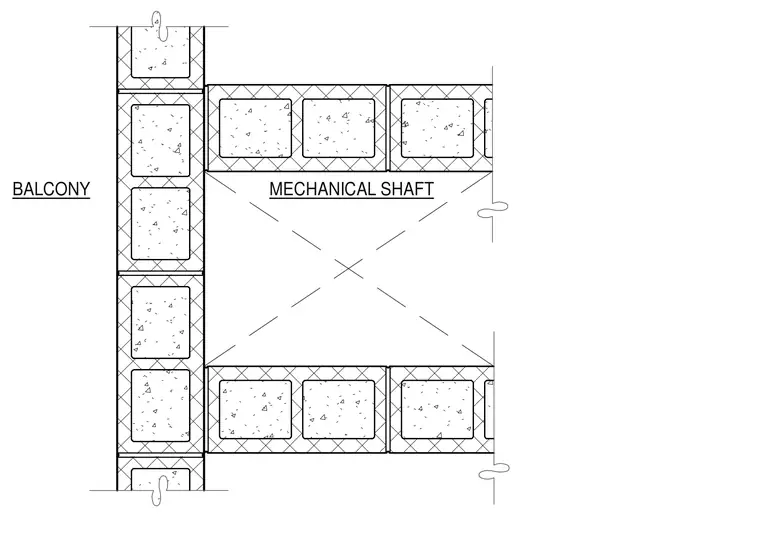

Concrete masonry unit walls enclose the mechanical shaft while intersecting the exterior balcony masonry wall assembly. The partition blocks abut the perpendicular masonry wall running continuously along the balcony edge.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
