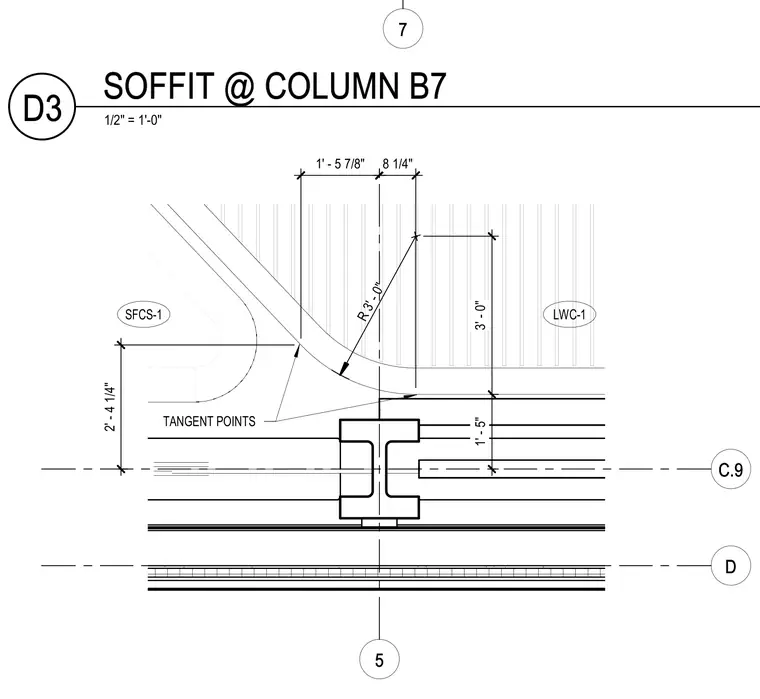

A curved soffit assembly interfaces with a structural steel column at grid intersection B7 and C.9. Dimensional layout includes a three-foot radius curve with specified tangent points and vertical and horizontal offset dimensions. Material callouts designate lightweight concrete and surface finishes associated with the architectural ceiling and column integration.
7 D 5 C.9 R 3 ' - 0 " 1 ' - 5 7 / 8 " 8 1 / 4 " 3 ' - 0 " 1 ' - 5 " 2 ' - 4 1 / 4 " T A N G E N T P O I N T S LWC-1 SFCS-1 1/2" = 1'-0" D3 SOFFIT @ COLUMN B7
