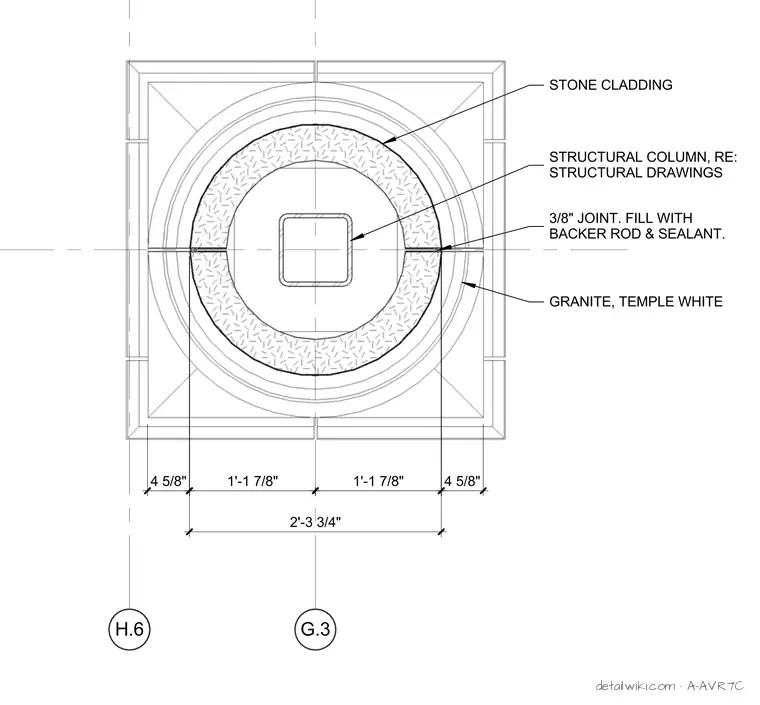

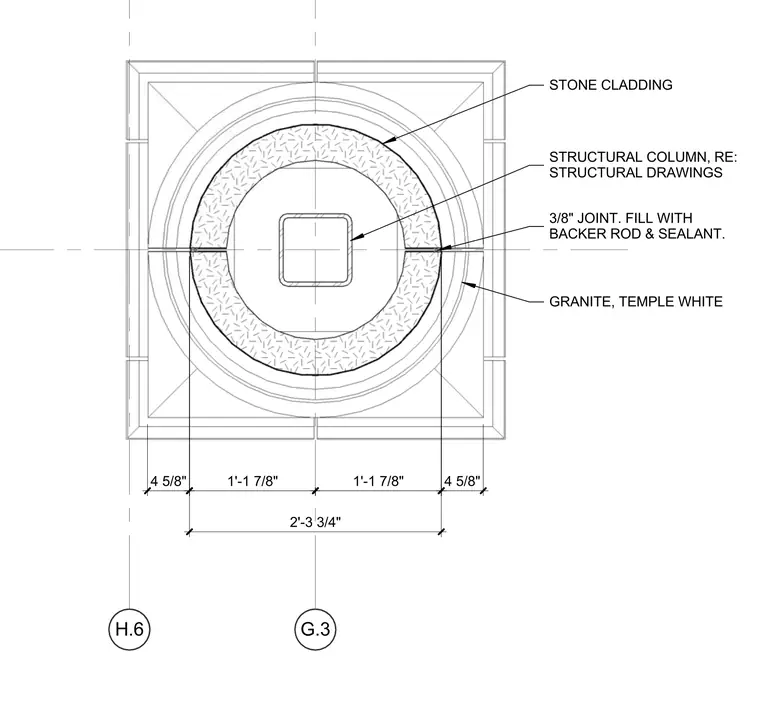

This column section details a structural steel column enclosed within a circular stone cladding assembly. The exterior finish consists of Temple White granite stone cladding arranged in a square profile with a circular core. A three-eighths inch joint filled with backer rod and sealant separates the stone segments. Dimensions reference grid lines H.6 and G.3 across the overall two-foot three-and-three-quarter-inch clear span.
H.6 G.3 1'-1 7/8" 1'-1 7/8" 2'-3 3/4" 4 5/8" 4 5/8" STONE CLADDING STRUCTURAL COLUMN, RE: STRUCTURAL DRAWINGS 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. GRANITE, TEMPLE WHITE
