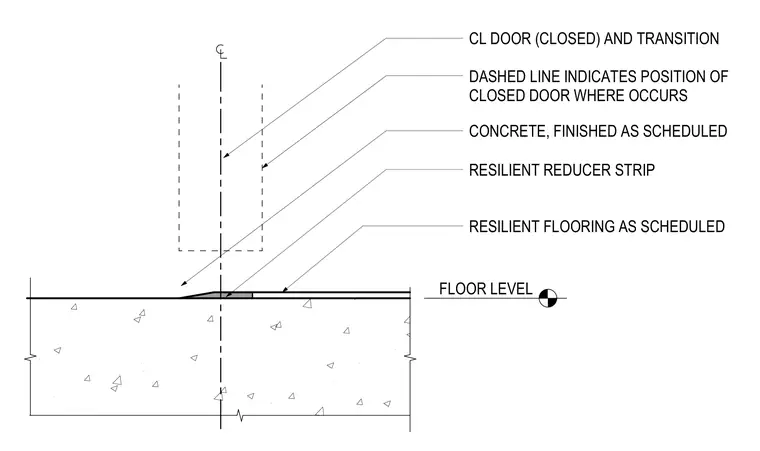

A resilient reducer strip is installed on a finished concrete floor slab at a doorway threshold to mediate between resilient flooring and the adjacent concrete surface. A dashed line indicates the centerline position of the closed door aligned with the transition.
DASHED LINE INDICATES POSITION OF CLOSED DOOR WHERE OCCURS CONCRETE, FINISHED AS SCHEDULED RESILIENT REDUCER STRIP RESILIENT FLOORING AS SCHEDULED FLOOR LEVEL CL DOOR (CLOSED) AND TRANSITION
