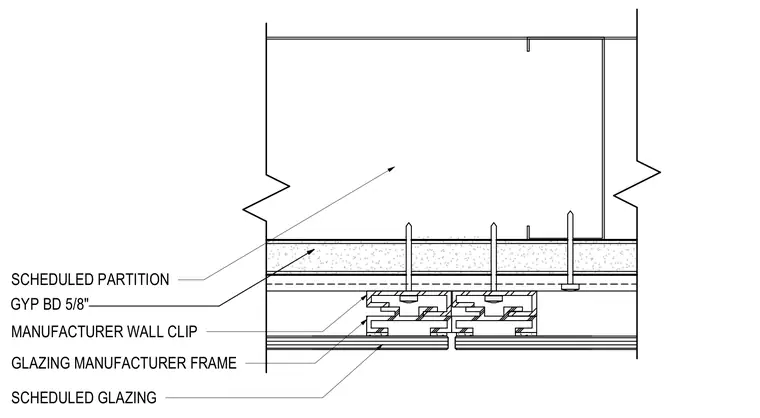

A scheduled partition framed with 5/8-inch gypsum board supports the glazing assembly through manufacturer wall clips. Glazing manufacturer frames secure the scheduled glazing panels at the intersection. Fasteners anchor the framing clips directly through the gypsum board into the partition framing behind.
GLAZING MANUFACTURER FRAME SCHEDULED GLAZING SCHEDULED PARTITION GYP BD 5/8" MANUFACTURER WALL CLIP
