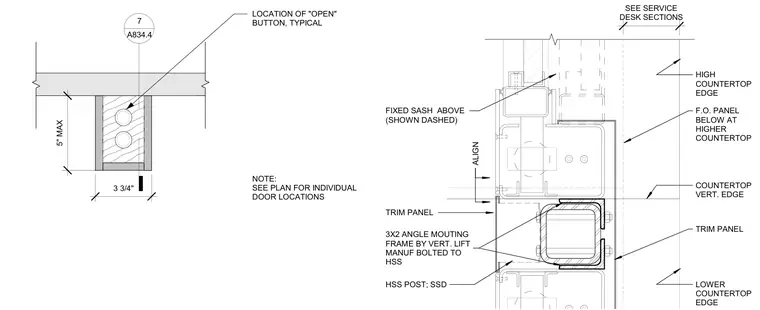

A hollow structural section post supports a vertical lift door at a service desk counter, featuring a three-by-two-inch angle mounting frame bolted directly to the structural steel tube by the manufacturer. Trim panels conceal the framing and align with both the upper and lower countertop edges. A separate control layout indicates the typical location of the open push buttons within the millwork frame.
FIXED SASH ABOVE (SHOWN DASHED) HSS POST; SSD 3X2 ANGLE MOUTING FRAME BY VERT. LIFT MANUF BOLTED TO HSS TRIM PANEL HIGH COUNTERTOP EDGE F.O. PANEL BELOW AT HIGHER COUNTERTOP TRIM PANEL ALIGN SEE SERVICE DESK SECTIONS COUNTERTOP VERT. EDGE LOWER COUNTERTOP EDGE 3 3/4" 5" MAX 7 A834.4 NOTE: SEE PLAN FOR INDIVIDUAL DOOR LOCATIONS LOCATION OF "OPEN" BUTTON, TYPICAL
