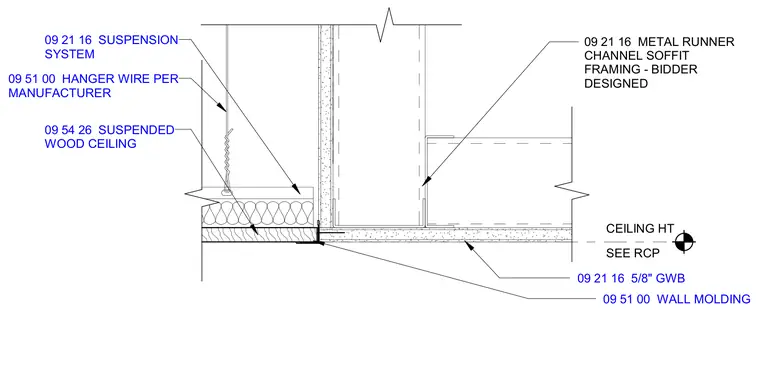

A suspended wood ceiling hangs from hanger wires installed per the manufacturer, utilizing a suspension system supported at the perimeter by a wall molding. Adjacent to this system, a gypsum wallboard ceiling consists of five-eighths inch GWB attached to bidder-designed metal runner channel soffit framing. The transition between the two ceiling types is detailed at a vertical partition.
09 21 16 5/8" GWB CEILING HT SEE RCP 09 21 16 METAL RUNNER CHANNEL SOFFIT FRAMING - BIDDER DESIGNED 09 21 16 SUSPENSION SYSTEM 09 54 26 SUSPENDED WOOD CEILING 09 51 00 HANGER WIRE PER MANUFACTURER 09 51 00 WALL MOLDING
