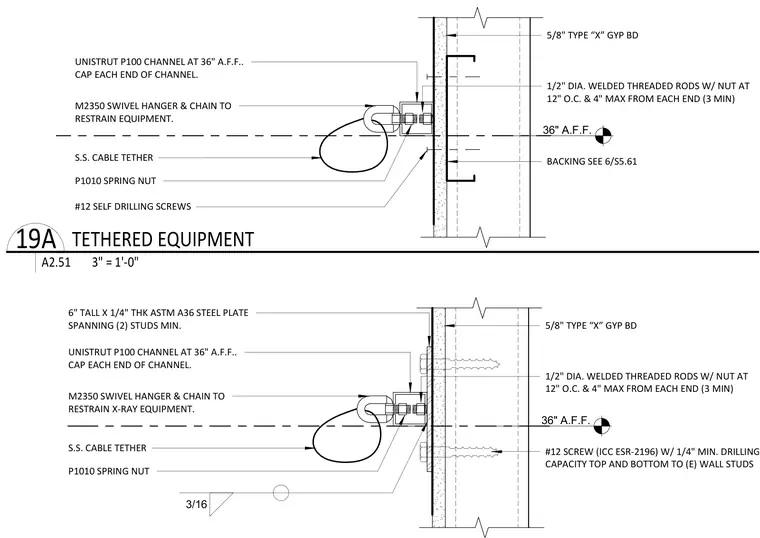

This wall-mounted support assembly anchors heavy medical equipment to existing metal stud framing through a 5/8-inch Type X gypsum board finish. A Unistrut P100 channel is attached horizontally at 36 inches above finished floor, capped at each end, and secured with P1010 spring nuts. In the reinforced configuration, a 6-inch tall by 1/4-inch thick ASTM A36 steel backing plate spans a minimum of two studs and connects via number 12 self-drilling screws with 1/4-inch minimum drilling capacity at the top and bottom. Half-inch diameter welded threaded rods with nuts are spaced at 12 inches on center with a maximum of 4 inches from each end, with a minimum of three required. A stainless steel cable tether and M2350 swivel hanger with chain restrain the X-ray equipment.
UNISTRUT P100 CHANNEL AT 36" A.F.F.. CAP EACH END OF CHANNEL. 36" A.F.F. P1010 SPRING NUT M2350 SWIVEL HANGER & CHAIN TO RESTRAIN X-RAY EQUIPMENT. 5/8" TYPE “X” GYP BD #12 SCREW (ICC ESR-2196) W/ 1/4" MIN. DRILLING CAPACITY TOP AND BOTTOM TO (E) WALL STUDS 6" TALL X 1/4" THK ASTM A36 STEEL PLATE SPANNING (2) STUDS MIN. 3/16 1/2" DIA. WELDED THREADED RODS W/ NUT AT 12" O.C. & 4" MAX FROM EACH END (3 MIN) S.S. CABLE TETHER UNISTRUT P100 CHANNEL AT 36" A.F.F.. CAP EACH END OF CHANNEL. 36" A.F.F. P1010 SPRING NUT M2350 SWIVEL HANGER & CHAIN TO RESTRAIN EQUIPMENT. 5/8" TYPE “X” GYP BD BACKING SEE 6/S5.61 1/2" DIA. WELDED THREADED RODS W/ NUT AT 12" O.C. & 4" MAX FROM EACH END (3 MIN) S.S. CABLE TETHER #12 SELF DRILLING SCREWS 3" = 1'-0" A2.51 19A TETHERED EQUIPMENT
