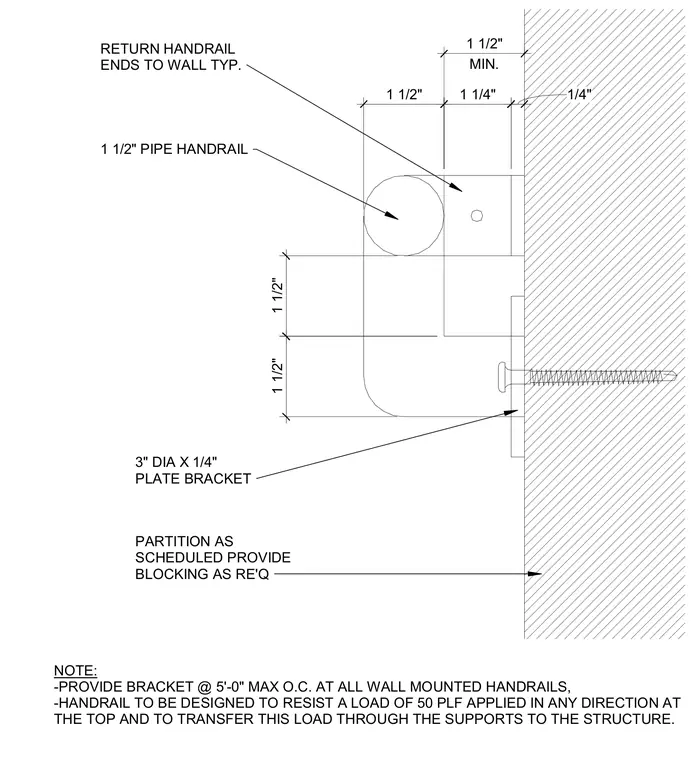

A one-and-one-half-inch diameter pipe handrail is mounted to a partition wall using a three-inch diameter by one-quarter-inch thick plate bracket. The bracket attaches to required wood blocking within the partition and features a one-quarter-inch minimum clearance. Handrail ends return to the wall typically. Brackets are spaced at a maximum of five feet on center. The handrail resists a load of fifty pounds per foot applied in any direction at the top.
1 1/4" 1 1/2" 1 1/2" 1 1/2" 1 1/2" 1/4" RETURN HANDRAIL ENDS TO WALL TYP. 1 1/2" PIPE HANDRAIL 3" DIA X 1/4" PLATE BRACKET PARTITION AS SCHEDULED PROVIDE BLOCKING AS RE'Q MIN. NOTE: -PROVIDE BRACKET @ 5'-0" MAX O.C. AT ALL WALL MOUNTED HANDRAILS, -HANDRAIL TO BE DESIGNED TO RESIST A LOAD OF 50 PLF APPLIED IN ANY DIRECTION AT THE TOP AND TO TRANSFER THIS LOAD THROUGH THE SUPPORTS TO THE STRUCTURE.
