Hollow Structural Section Column Profiles and Material Specifications

Elements

About this detail

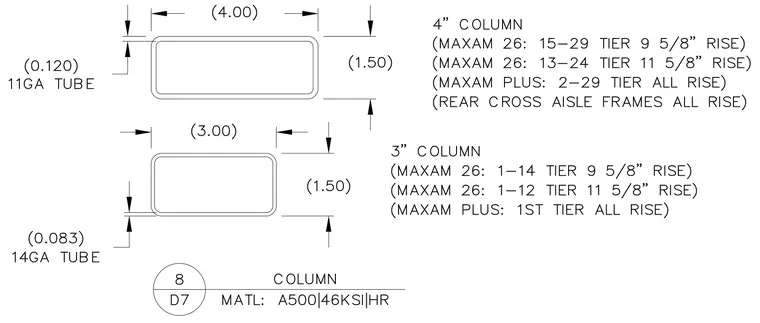

Two rectangular hollow structural section steel tube profiles are detailed with dimensional properties and material designations. The upper profile measures 4 inches by 1.5 inches with a 0.120-inch wall thickness corresponding to an 11-gauge tube, specified for Maxam 26 tiers 15 through 29 with 9-5/8 inch rise, Maxam 26 tiers 13 through 24 with 11-5/8 inch rise, Maxam Plus tiers 2 through 29, and rear cross aisle frames. The lower profile measures 3 inches by 1.5 inches with a 0.083-inch wall thickness corresponding to a 14-gauge tube, specified for Maxam 26 tiers 1 through 14 with 9-5/8 inch rise, Maxam 26 tiers 1 through 12 with 11-5/8 inch rise, and Maxam Plus first tier installations. Material is designated as ASTM A500 Grade steel with a 46 KSI minimum yield strength and hot-rolled finish.
